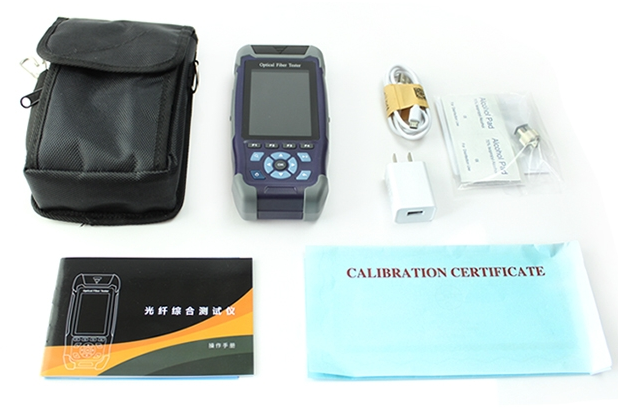

• AV-MINIOTDR Mini Pro OTDR 3.5 inch
• Dynamic range: 24/26dB
• Testing distance: 60km-70km

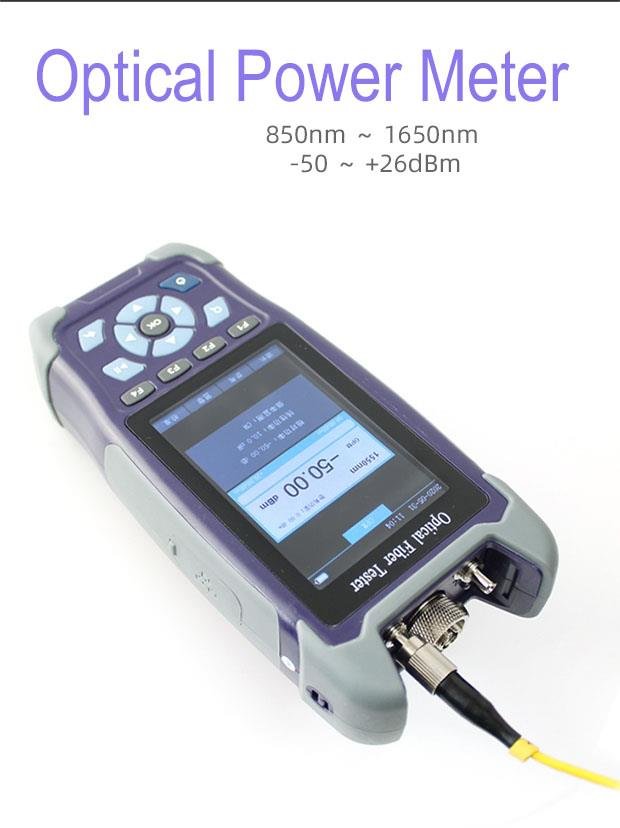

• 1310nm 1550nm wavelength OPM,
• Laser source
• VFL supporting

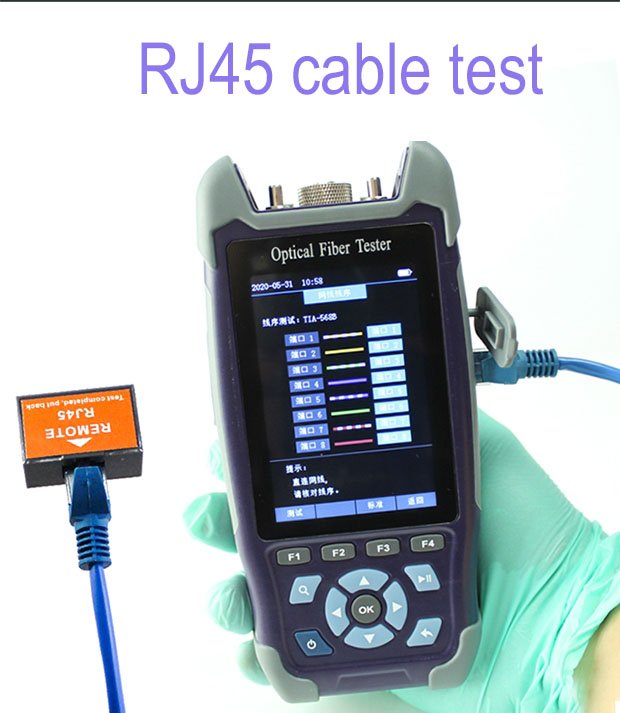

• RJ45 Line Tracker Optional Handheld Mini Pro OTDR.
Cable construction
| Mini-Pro OTDR | |
| Model | AV-MINIOTDR-C |
| Wavelength | 1310nm/1550nm±20nm |
| Fiber Type | G.652 |
| Dynamic Range | 26dB/24dB |
| Event Blind Zone | 3m |
| ATT Blind Zone | 8m |
| Test Range | 500m~70km |
| Pulse Width | 3ns~10us |
| Ranging accuracy | ±（1m+ Sampling interval +0.005％×Test distance） |
| Loss accuracy | ±0.05dB/dB |
| Sampling Points | 16k~128k |
| Sampling resolution | 0.05m~8m |
| Reflection accuracy | ±3dB |
| Data Storage | Internal: ≥600；External: TF Card |
| Laser Safety Level | Class Ⅱ |
| File format | SOR Standard file format |
| Connector | FC/UPC（Interchangeable SC, ST） |
