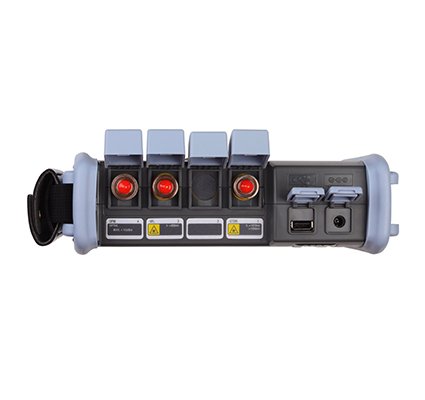

AV-3000 OTDR

  • AV-3000 OTDR - aveis ftth
  • AV-3000 OTDR - aveis ftth
  • AV-3000 OTDR - aveis ftth
  • AV-3000 OTDR - aveis ftth

Item No.:AV 3000


AV 3000 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system.


1. High performance test: 5.8 inch color TFTLCD display, touch/ key dual operation, Dynamic range:. 32/30dB, Less than 0.8 meters ultra, short event blind area, testing optical fiber jumper freely, Link optical nondestructive testing, Signal optical detection function (Effective protection of APD)
2. Muti-functional test – Standard configuration: OTDR, Stable laser source, Visual red, light fault location (VFL), Optical power meter (OPM)
3. Muti-funtional test – high configuration: Intelligent Optical Link Mapper [iOLM], Optical fiber end face detection, Optical loss test , Fault location
4. Convenient operation: One key automatic test, unique diagnostic function for test, Multi wavelength simultaneous testing function, Ethernet Remote control
5. Convenient data processing: English and Chinese input function, Automatic data storage , SOR Batch processing, Remote upgrade function, IOT Cloud Platform soon
6. High reliability: 20h Super long standby, 1.5 meter drop test, Waterproof and splash proof, Operating temperature -10℃~50℃


It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.


ProductAV-3000 Series Multi-Function Optical Time Domain Reflectometer
Fiber typeSMMMSM&MM
Wavelength(nm)1310/15501310/1490/15501310/1550/16251310/1550/1625850/ 1300850/1300/1310/1550
Maximum dynamic range(dB)35/3338/3642/4045/4337/35/3532/30/2837/35/3526/2826/28/37/35
Event dead zone(m)
Attenuation dead zone(m)666666666
Display5.8 inch color LCD with touch screen size: 227 mm *160 mm *70mm
Measuring range500m /l km /2 km /4 km /8 km /16 km /32 km /64 km /128 km /256km
Measuring pulse width5ns/ 10ns/ 5Ons/ 160ns/ 320ns/ 500ns/1000ns/ 5000ns/ 1000ns/ 2000ns
Ranging accuracy±  (0.75m+ Sampling interval +0.005% x Test distance)
Loss precision± 0.05dB
Reflection accuracy± 3dB
Data storage≥2000
Interface typeFC/ PC (Replaceable SC, ST)
Communication interfaceUSB, mini-USB, 10M/100M Ethernet
VFL output≥5mW
