AV-FSM01 Splicing Machine

  • 6 motirs splicer

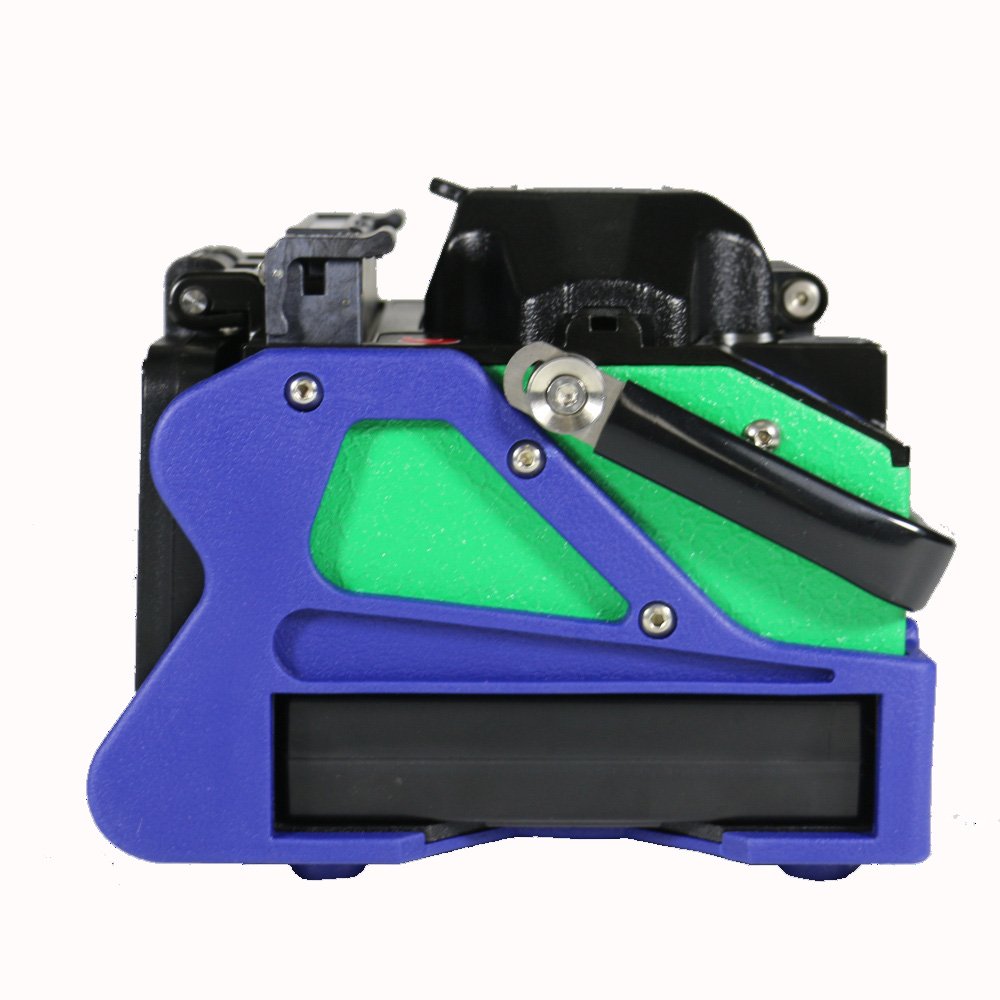

  • Fiber machine

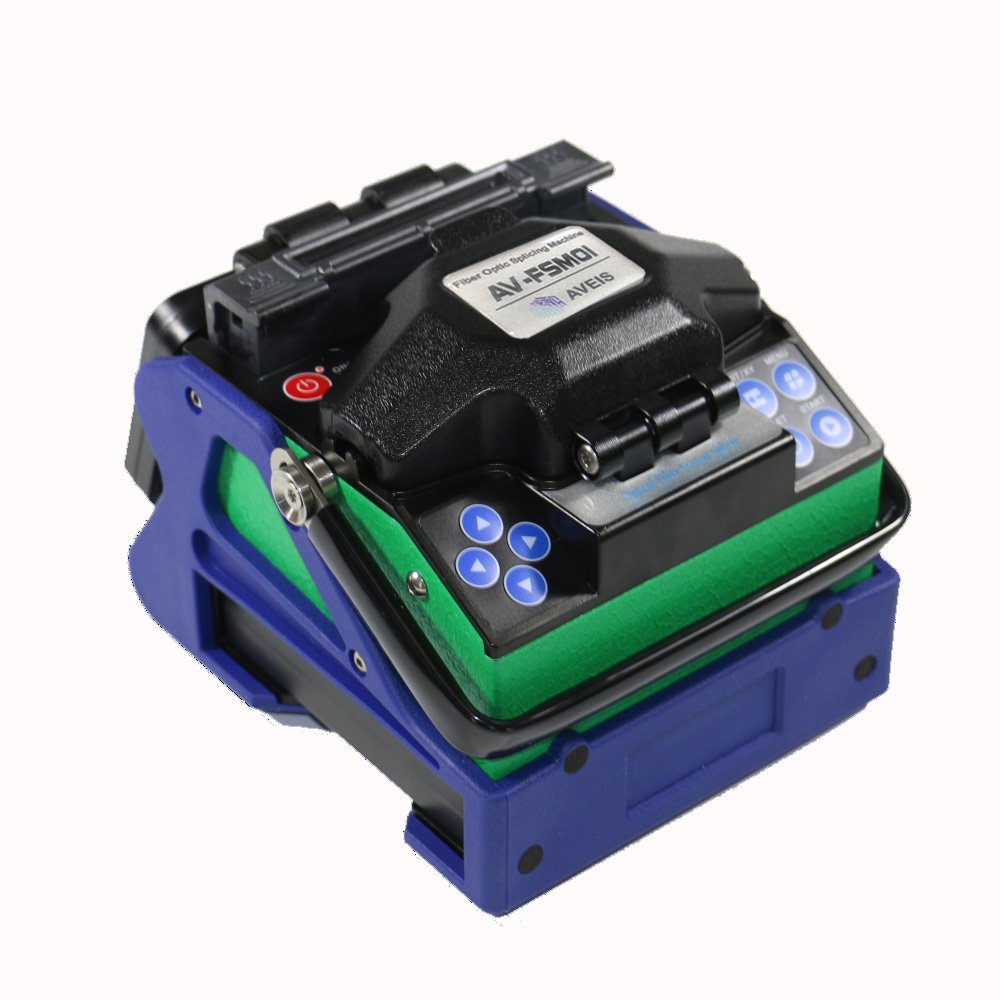

  • Fiber optical fusion splicer
  • AV FSM01 2

Item No.:AV-FSM01


AV-FSM01 0ptical fiber fusion splicer is a mini fiber splicing equipment which is compactly designed, easy to carry and operation. It has vivid and exquisite image-forming system and high precision image processing technology on fiber alignment which leads to its high proficiency in splicing and low loss.


1. Based on the principle of PAS(Lateral Projection System), adopt advanced image detection algorithm.
2. Double core align structure, higher success rate of fusion and lower loss.
3. Adopt 4.3 inches 16:9 TFT colorized LCD screen.
4. Typical fusion time: 9sec; fast time: 7sec.
5. Heating time: 2mm Heating Sleeve(10-15s Adjustable ),4mm Heating Sleeve(14-19s Adjustable ),6mm Heating Sleeve(17-23s Adjustable ).
6. Reliability design, strengthen shockproof, dust proof and other functions.
7. Low power consumption design makes it possible to work long time with many functions operate at the same time.
8. Multi-functional, small-sized, portable, can greatly improve working efficiency.
9. Can detect the air pressure, temperature and humidity and other environmental factors and automatically calibrate arc.
10. Removable plug the battery, convenient and quick charge.


Applicable Optical Fiber TypesSM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655), EDF,BIF/UBIF
Applicable Optical Fiber Core NumberSingle core
Applicable  Optical Fiber DiameterCladding Diameter: 90-150μm,Coating diameter:125~1000μm
Fusion splice ModelPrestore:40 groups, User define: 80 groups
Average Fusion Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return LossBetter than 60dB
Fusion splice  Duration Time9Sec(Typical Mode), 7Sec(Fast Mode)
Loss  Estimation of Fusion SpliceExist
Tension Test≥2N(Optional big rally fusion splicer 8N)
Display4.3 inches colorized LCD
Optical Fiber Magnification TimesX/Y:180 times, X or Y:350 times
Power Supply11.1V Lithium battery, 13.5V/5A power adapter
BatteryTypically work 260 cycles ( Splicing / Heating),
Full charge 3Hours, Recharge Cycle: 500 times, 6800mA Li-battery
Storage10,000 Records
Image storage10 pieces image
Data InterfaceUSB2.0
Operating EnvironmentElevation:0~5000m, Relative humidity:0~95%,Temperature:-20°C~55°C,Maximum wind speed:15m/s
Storage EnvironmentRelative humidity:0~95%, Temperature:-40°C~80°C (Except Battery), Temperature:-10°C~40°C (Battery)
Weight1.53kg(without battery), 1.93kg(with battery)
Corrosion ResistanceEquipment components, Parts and materials meet composite anti-corrosion requirements, Anti-fluid pollution
Working aloftOptional side hook strap, you can hang the machine directly on the operator’s neck by the strap
AlignmentCore alignment, Cladding alignment, Fine Alignment
Applicable Optical Fiber Cable Diameter2mm, 3mm, 4mm, 6mm
Applicable Sleeve Length60mm, 45mm, 40mm(FP-03)
Heating time2mm Heating Sleeve(10-15s Adjustable ),4mm Heating Sleeve(14-19s Adjustable ),6mm Heating Sleeve(17-23s Adjustable )
Heating temperatureBelow 300°C (customizable)
Automatic HeatingAutomatic fiber identification & Heating when close cover

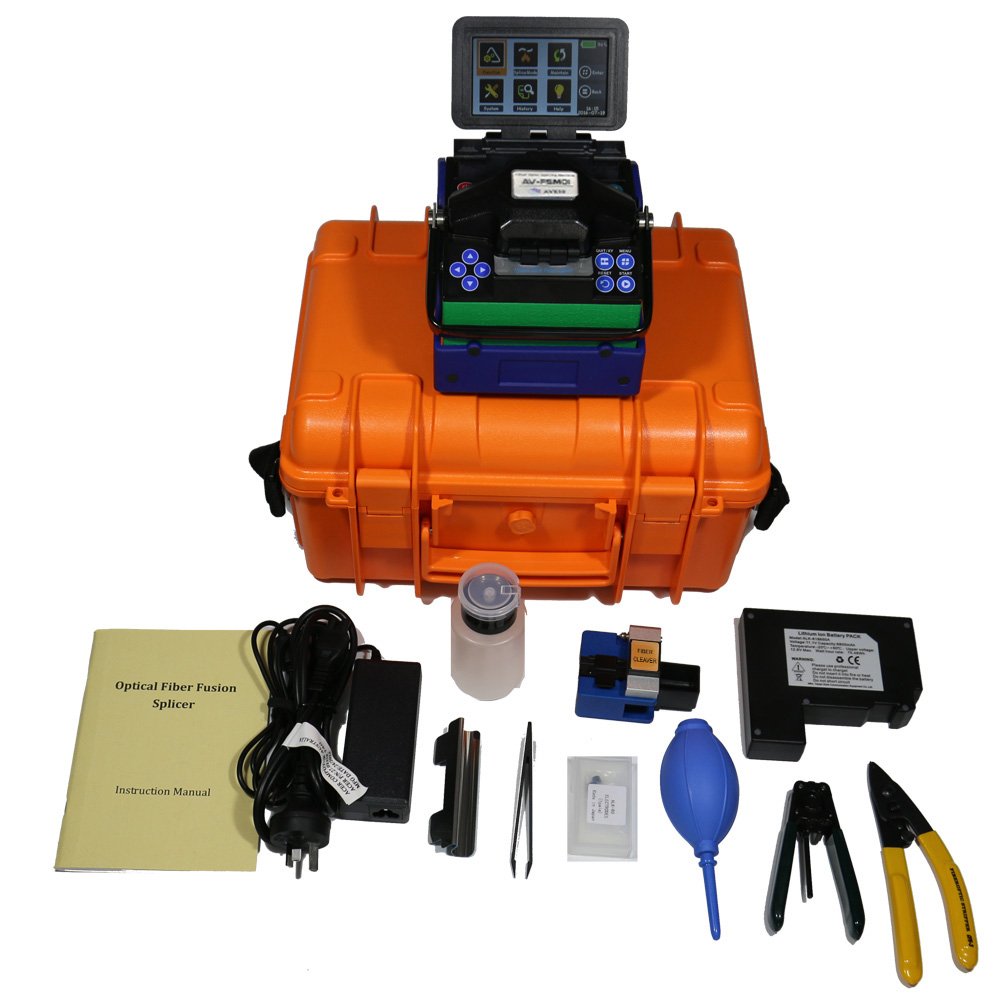

Accessories Package
