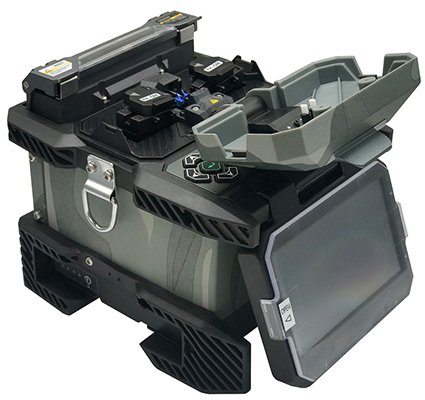

AV-FSM03 Splicing Machine

  • 6 motors fusion splicer

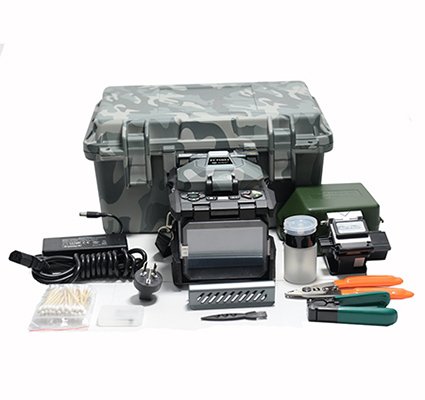

  • Handhold splicing machine
  • Optical fiber fusion splicer

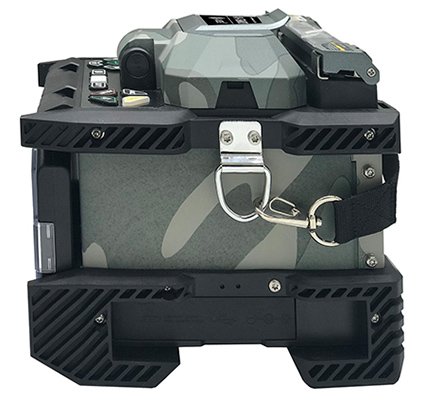

  • fusion

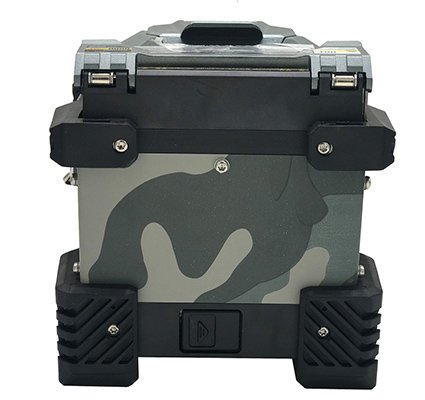

  • optical fiber ftth equipment

Item No.:AV-FSM03


AV-FSM03 Optical fiber fusion splicer is mainly used for the splicing and protection of various types of communication optical fiber cables and clamp-doped optical fibers. The product’s powerful functions and ultra-low splice loss make it fully suitable for fiber splicing applications in various environments; product miniaturization and light weight are one of the main features of this product; strong environmental adaptability, high reliability, dustproof and waterproof , Anti-drop; Provide a variety of welding modes and heating mode parameters, to meet the various welding needs of users; use high-precision ceramic V-groove, making fiber placement more convenient and accurate, and easy to clean and maintain, with a touch screen display , Equipped with a newly designed graphical menu interface to facilitate user welding operations; large-capacity pluggable modular lithium battery provides a reliable guarantee for long-term outdoor work; automatic environmental compensation greatly improves the equipment’s ability to adapt to harsh environmental changes, which is different The consistency of low-loss connection under the environment provides a guarantee.


  • Small size, light weight
  • 7s fast splicing, 15s highly efficient heating
  • 0~15dB attenuation fusion
  • IP52
  • Windproof 15m/s
  • 60cm height drop from six sides
  • CE certification
  • 320 times image magnification, 5mm fusing for ultra-short cleave length
  • 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
  • Ceramic presser foot, ceramic V-groove
  • All-in-one fixture
  • Dual-directional fusing, auto fusing, intelligent heat shrink
  • USB and SD card interface, auto update of U disk
  • Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
  • GUI (graphical user interface) and touch screen, convenient for operation
  • Dust-resistant, water-resistant, shock-resistant, greater environment adaptability


Motor6 motors
Applicable Optical Fiber DiameterCladding Diameter: 80-150μm,Coating diameter:0.1~3mm
Applicable Optical FiberAny common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Cleave length5~16mm
Average Fusion Splice Loss0.02dB(SMF), 0.01dB(MMF), 0.04dB(DSF), 0.04dB(NZDSF)
Fusion Time7S
Heating Time16S
Loss  Estimation of Fusion SpliceExist
Tension Test1.96~2.25N
Display4.3 inches colorized LCD touch screen
Protection sleeve60mm, 40mm and a series of protection sleeves
Magnification time320/88 times 700 times
Fusion records10000 groups/64 images
Battery capacity6400mAh
Electrode service lifeTypical: 4000 counts, can be replaced by customers
Construction lightingBuilt-in lights with high-brightness and wide lighting area
Operating EnvironmentTemp:-10~50℃; Hum: 0~95%RH, height above sea level: 0~6000m
Operation interfacesGUI (graphical user interfaces)
External powerAC: 100~240V, 60Hz, 0~1.5A; DC: 10~15V
PortUSB / SD
Weight2.1kg(with battery)
